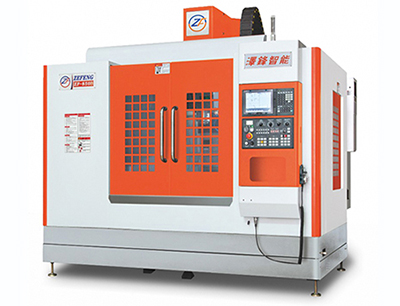

ZF-1890B Vertical Machining Center

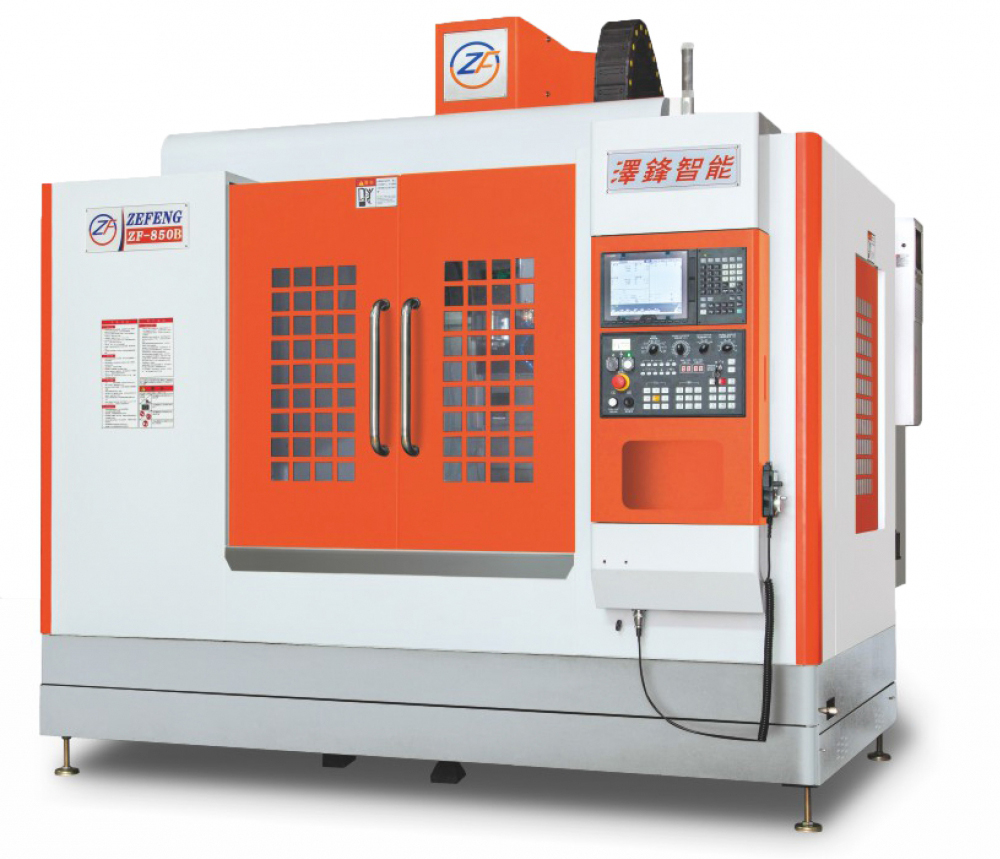

ZF-850B Vertical Machining Center
Processed Samples
  • Precision Parts Precision Parts
  • Precision Parts Precision Parts

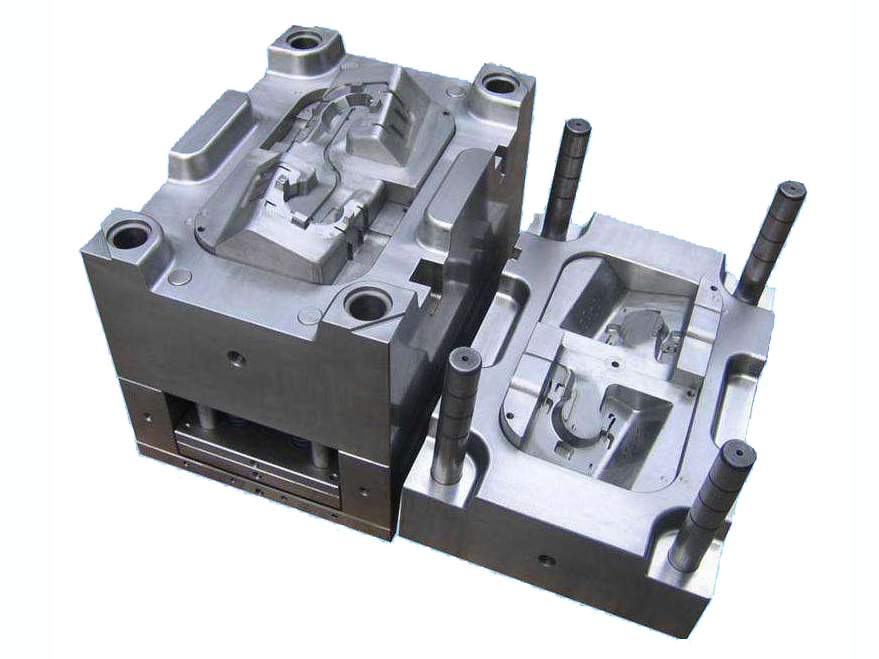

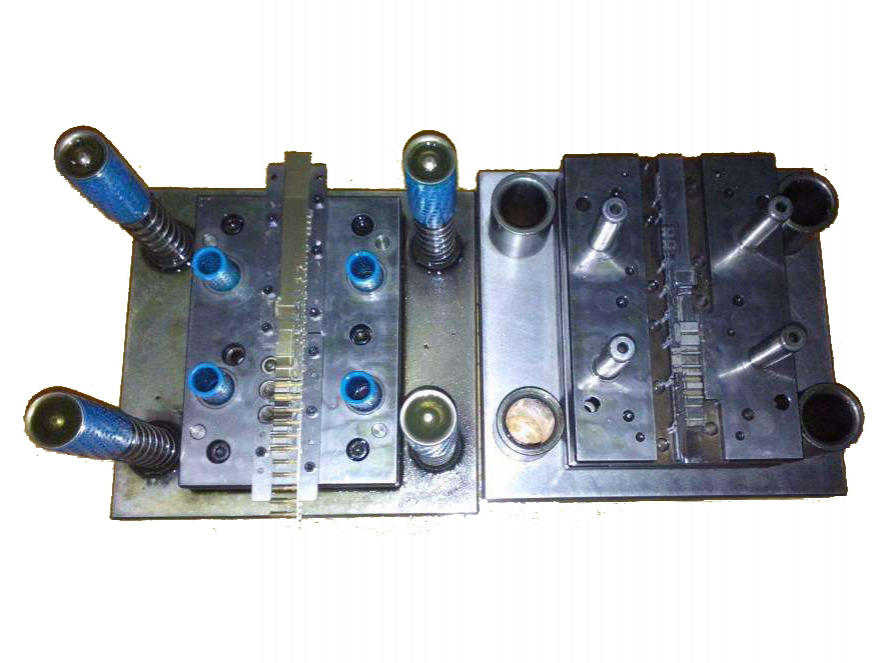

  • Molds and Dies Molds and Dies
  • Molds and Dies Molds and Dies

The ZF-1890B vertical machining center was developed to machine molds and dies. Its X/Y/Z axes travel lengths are 1800mm, 900mm, and 800mm respectively. It has the largest volume, allowing for a maximum material load up to 1600kg.

Parameters
Mode ZF-1890B
X/Y/Z axis travel (mm) 1800×900×800
Worktable area (mm) 2000×900
Maximum weight on table (kg) 1600
Distance between spindle center to column (mm) 950
Distance from spindle nose to table center (mm) 160-840
Three-axis motor power (kw) 4.5/7/4.5
X/Y/Z axis rapid feed (mm/min) 15000/15000/12000
Control system MISUBISHI:M70A, FANUC:Oi-MD/Oi mate-MD, SIEMENS828D
Spindle taper BT50
Standard spindle speed (r.p.m) 8000(6000)
Spindle horsepower (kw) 22
Air pressure (bar) 6-7
Machine dimension (mm) 4800×3500×3500
Machine weight (kg) 16000
Features
ZF-850B Vertical Machining Center

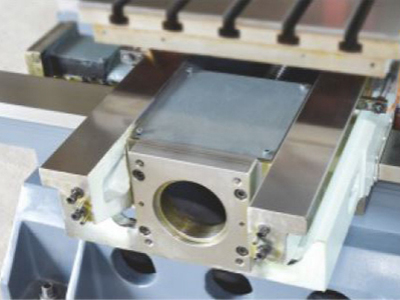

The three-axis slideway is plated with friction materials to make the guide rail smooth, thus improving its accuracy and efficiency.
ZF-850B Vertical Machining Center

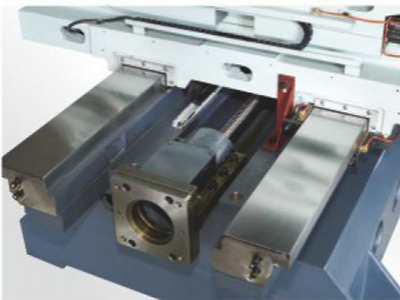

Machining centers with box guideways feature high-speed ballscrews, reducing friction and increasing positional accuracy and efficiency.
ZF-850B Vertical Machining Center

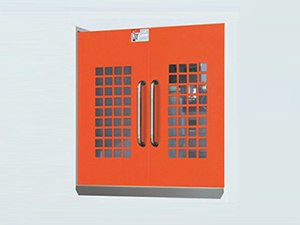

Its wide front gate allows for easy loading and unloading of processed components and dies.
ZF-850B Vertical Machining Center

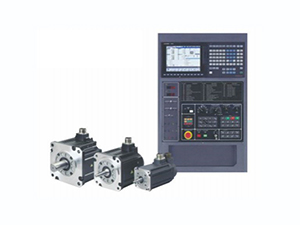

Machining center adopts Mitsubishi, FANUC, and Siemens components to ensure high security and performance.
