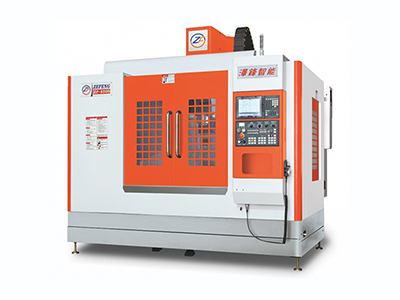

ZF-1270B Vertical Machining Center
ZF-850B Vertical Machining Center
Processed Samples
  • Precision Parts Precision Parts
  • Precision Parts Precision Parts
  • Molds and Dies Molds and Dies
  • Molds and Dies Molds and Dies

Our ZF-1270B vertical machining center is used to produce molds and dies with high efficiency. Its worktable area is 1000×530mm, which features maximum material load up to 1000kg. It can meet the needs of larger scale mold and die processing operations.

Parameters
Mode ZF-1270B
X/Y/Z axis travel (mm) 1200×700×600
Worktable area (mm) 1360×700
Maximum weight on table (kg) 1000
Distance between spindle center to column (mm) 758
Distance from spindle nose to table center (mm) 150-750
Three-axis motor power (kw) 3
X/Y/Z axis rapid feed (mm/min) 16000/16000/14000
Control system MISUBISHI:M70A, FANUC:Oi-MD/Oi mate-MD, SIEMENS828D
Spindle nose BT50
Standard spindle speed (r.p.m) 8000(10000)
Spindle horsepower (kw) 13
Air pressure (bar) 6-7
Machine dimension (mm) 3600×2900×2900
Machine weight (kg) 9800
Features
ZF-850B Vertical Machining Center
The three-axis slideway is plated with friction materials to make the guide rail smooth, thus improving its accuracy and efficiency.
ZF-850B Vertical Machining Center
Machining centers with box guideways feature high-speed ballscrews, reducing friction and increasing positional accuracy and efficiency.
ZF-850B Vertical Machining Center
Its wide front gate allows for easy loading and unloading of processed components and dies.
ZF-850B Vertical Machining Center
Machining center adopts Mitsubishi, FANUC, and Siemens components to ensure high security and performance.
