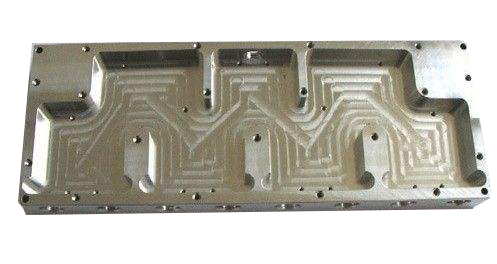

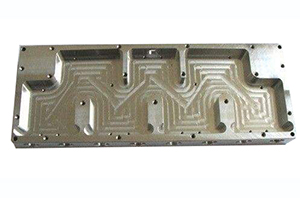

  • Precision Parts Precision Parts

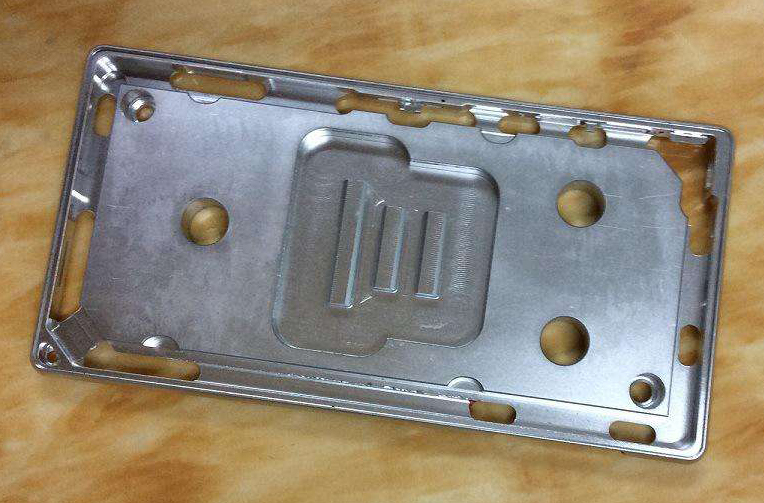

  • Precision Parts Precision Parts

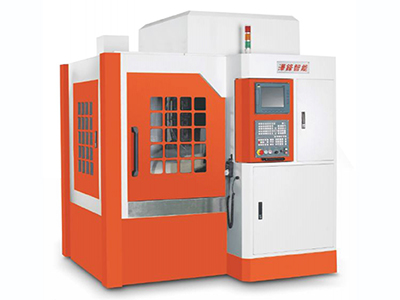

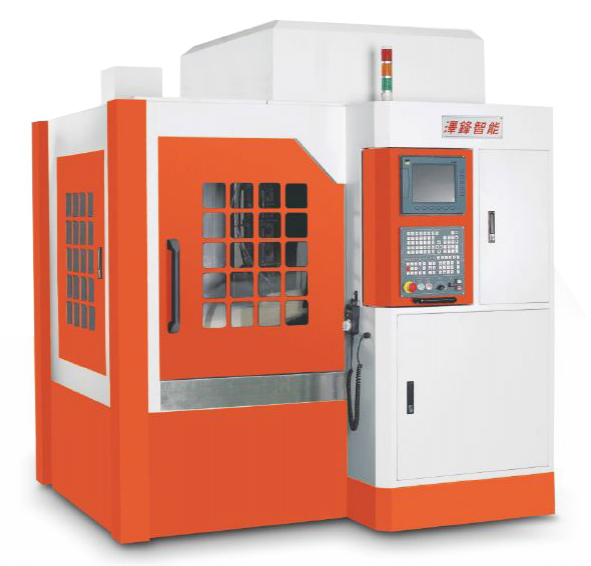

The ZF-650 vertical CNC mills feature a high speed and precision. The worktable is 650 x 480mm.

Parameters
Model ZF-650
X-axis travel (mm) 600
Y-axis travel (mm) 500
Z axis travel (mm) 230
Distance from spindle nose to table center (mm) 50-280
Feed Triaxial cutting feed (m/min) 10
Triaxial rapid feed (m/min) 24
X-axis motor power (kw) 0.85
Y-axis motor power (kw) 0.85
Z-axis motor power (kw) 0.85
Spindle end connection ER20/ER25/ER32
Spindle power (kw) 4.0/5.5
Standard spindle speed (r.p.m) 1800/24000
Worktable area (mm) 650×480
T-Slot (Number of Slot-Width×Spacing)(mm) 3-18×150
Maximum weight on table (kg) 300
Machine dimension (mm) 2000×1750×2300
Machine weight (kg) 2800
Control system SYNTEC
Features
ZF-550 Vertical CNC Mills

The cast iron machine body features an exceptional stability, allowing for a high processing accuracy.

ZF-550 Vertical CNC Mills

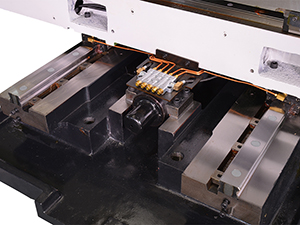

Both machine ends feature support bearings, which are equipped with the corresponding pretension to ensure machine stability.

ZF-550 Vertical CNC Mills

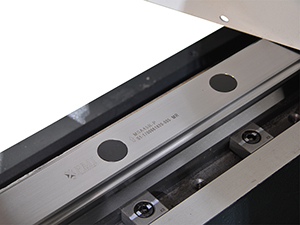

Both ends of the ball screw are equipped with bearings to improve slider movement stability.
