ZF-T10 CNC Machining Center
ZF-T10 CNC Machining Center
Processed Samples

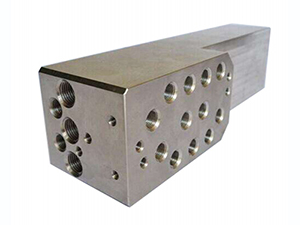

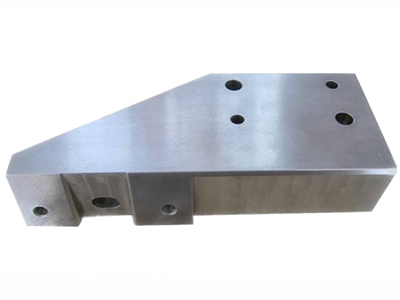

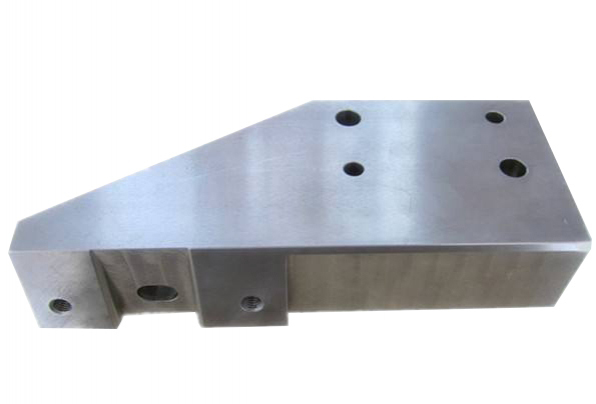

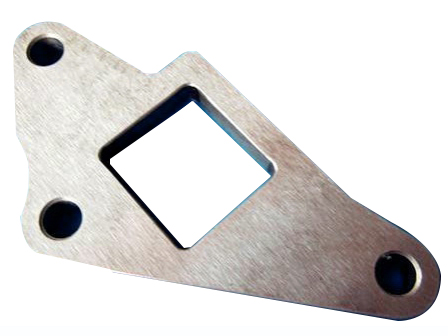

  • Precision Parts Precision Parts
  • Precision Parts Precision Parts

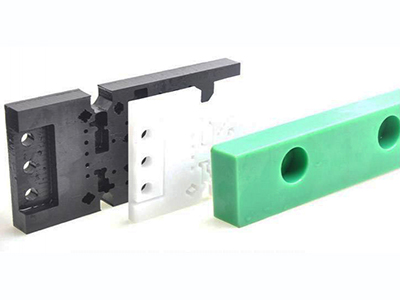

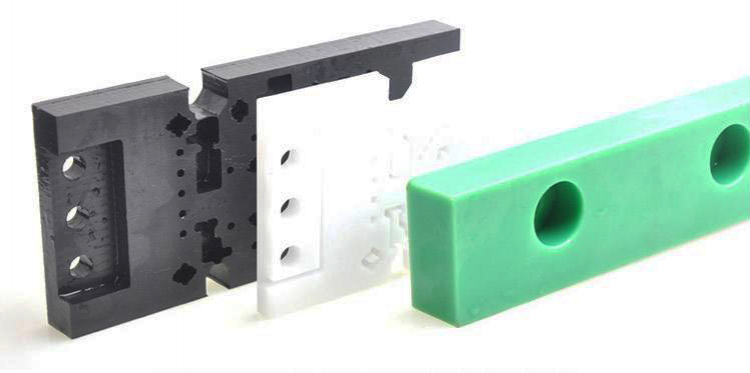

  • Plastic Profiles Plastic Profiles
  • Precision PartsPrecision Parts

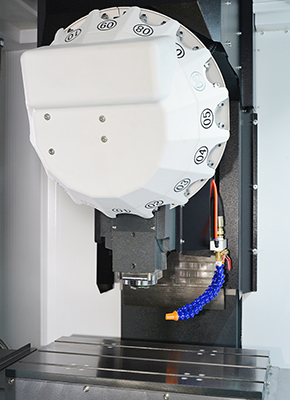

The ZF-T10 CNC machining center is used to process small precision parts, making it ideal for use in processing parts for watches, jewelry, and glasses. The worktable is 1000mm×400mm and the positioning accuracy is ± 0.005/300.

Parameters
Model ZF-T10
X-axis travel (mm) 1000
Y-axis travel (mm) 400
Z axis travel (mm) 300/400/600
Distance from spindle nose to table center (mm) 150-450
Distance between spindle center to column (mm) 425
Worktable area (mm) 1000×400
Maximum weight on table (kg) 600
T-Slot (Number of Slot-Width×Spacing)(mm) 3-18×125
X/Y/Z axis rapid feed (mm/min) 60/60/60
Triaxial cutting feed (mm/min) 1-2400
Standard spindle speed (r.p.m) 20000
Spindle speed (non-standard) (r.p.m) 15000/20000/24000
Spindle taper BT-30
Spindle horsepower (kw) 5.5
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003
Air pressure (bar) 5
Power requirement (kVA) 20
Machine weight (kg) 5500
Machine dimension (mm) 2150×2900×2850
Features
  • The column is made of Meehanite cast iron, ensuring there is a strong shock absorption, and an excellent abrasion resistance.
  • The column features an added height for installation of the 4th and 5th axis.
  • A quick-response spindle improves both the drilling and tapping efficiency.
  • The screws and linear guide are designed with a protective cover, which extends the machining center’s service life.
