ZF-3500 Profile Machining Center
ZF-2500 Profile Machining Center

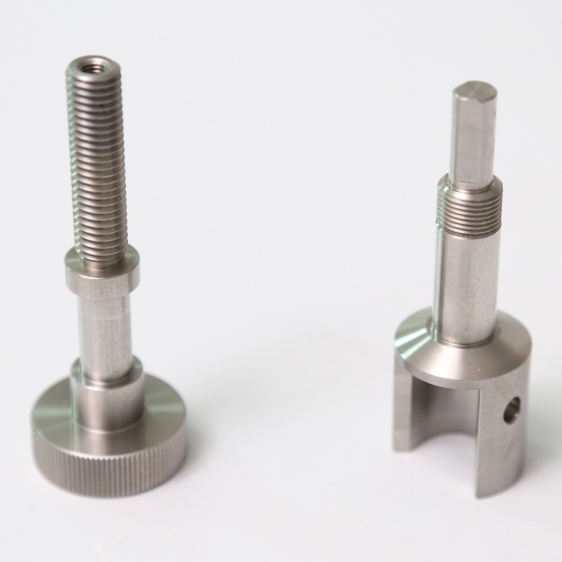

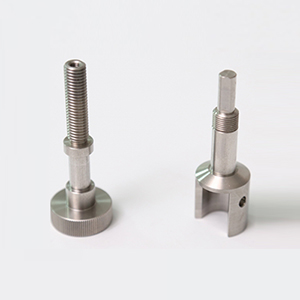

Processed Samples

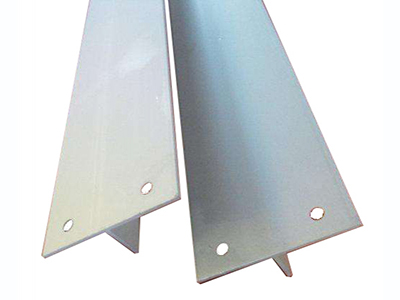

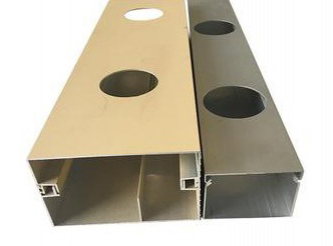

  • Aluminum Alloy Profiles
    Aluminum Alloy Profiles
  • Aluminum Alloy Profiles
    Aluminum Alloy Profiles

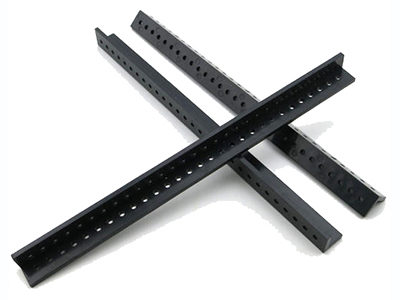

  • Plastic Profiles
    Plastic Profiles
  • Plastic Profiles
    Plastic Profiles

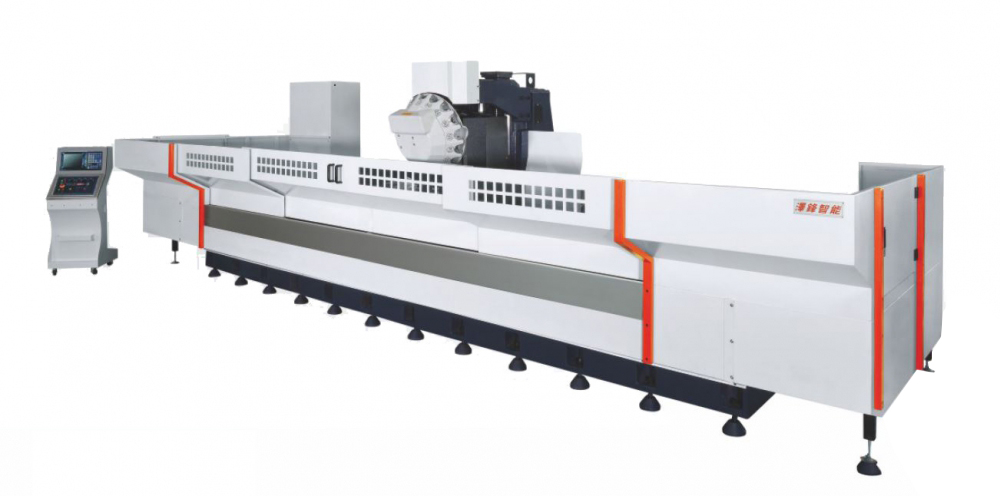

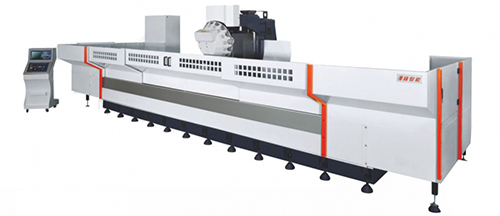

The ZF-3500 is a 3-axis machining center designed to process profiles. The worktable is 3500mm x 400mm, allowing for a maximum material load of up to 3,000kg. It is one of our best machines, and meets most processing requirements without taking up a large amount of space.

Parameters
Model ZF-3500
X/Y/Z axis travel (mm) 3500×400×500
Worktable area (mm) 3500×400
Maximum weight on table (kg) 3000
Distance between spindle center to column (mm) 410
Distance from spindle nose to table center (mm) 130
Three-axis motor power (kw) 3/3/3
X/Y/Z axis rapid feed (mm/min) 60
Control system MISUBISHI:M80-A-B, FANUC:Oi mate-MD, SYNTEC M200
Spindle taper BT30/BT40
Standard spindle speed (r.p.m) 20000/15000/12000
Spindle horsepower (kw) 5.5/7.5
Air pressure (bar) 48/48
Machine dimension (mm) 6000×3000×3000
Machine weight (kg) 8500
Features
ZF-2500 Profile Machining Center

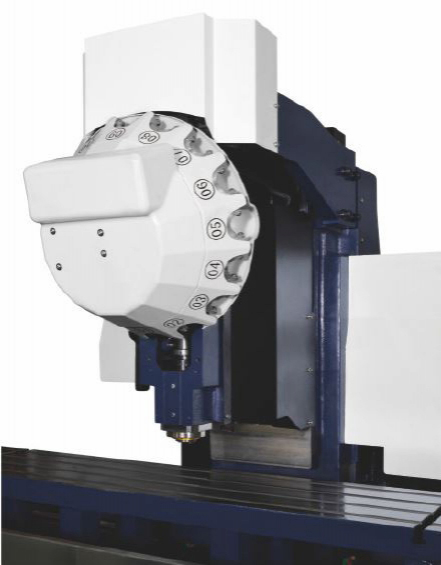

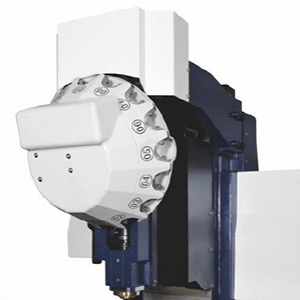

The column is made of Meehanite cast iron, giving it a better stability than a channel welded using steel.
ZF-2500 Profile Machining Center
The X Y travel axis speed is 60m/minute, and the Z travel axis speed is 48m/minute.
ZF-2500 Profile Machining Center

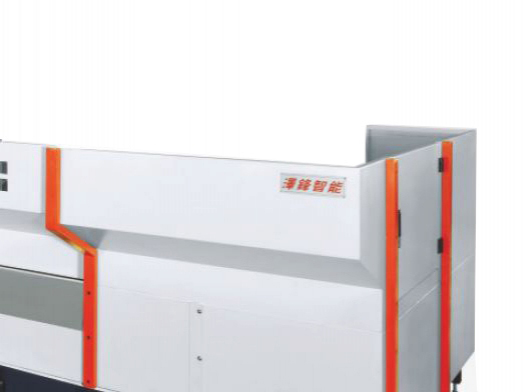

The machine features an open structure.
ZF-2500 Profile Machining Center
The profile machining center works with a wide array of materials, including aluminum, iron, copper, and non-metallic materials.
