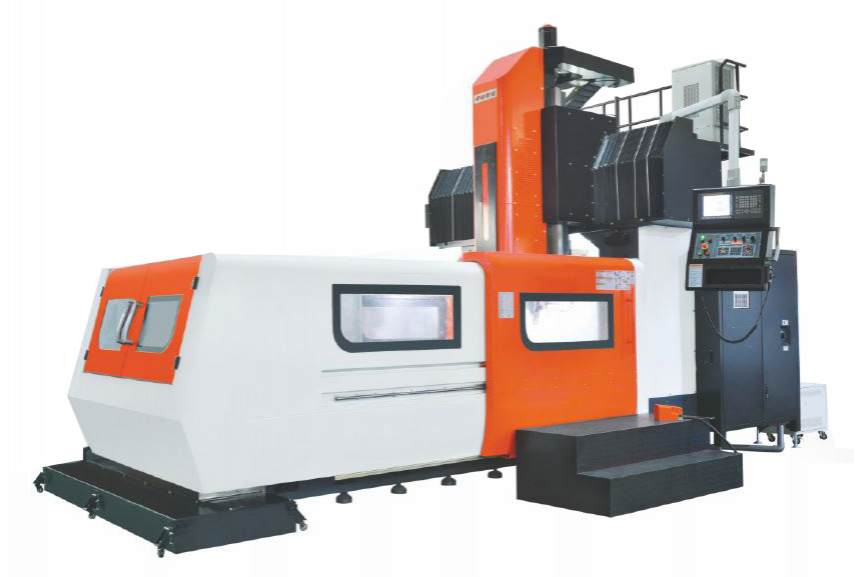

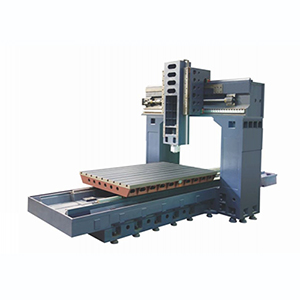

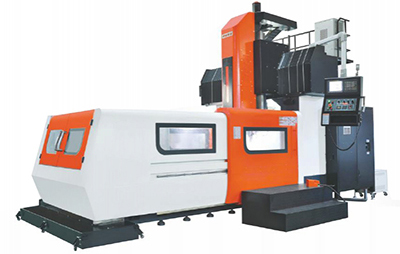

ZF-2013 Gantry Machining Center
ZF-2013 Gantry Machining Center
Processed Samples

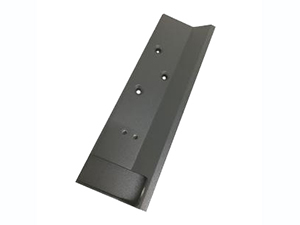

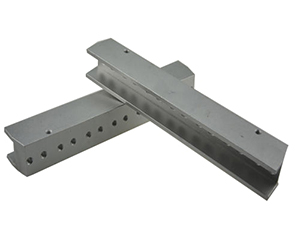

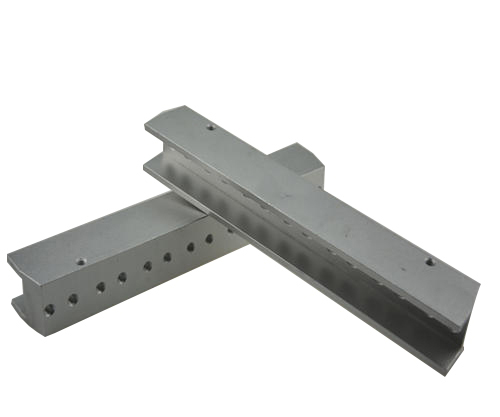

  • ZF-2013 Gantry Machining CenterLarge Size Parts
  • ZF-2013 Gantry Machining CenterLarge Size Parts

The ZF-2013 is primarily used to process large, complex shaped parts. The worktable is 2200 x 1100mm, allowing for a maximum material load of up to 2000kg.

Parameters
Model ZF-2013
X/Y/Z axis travel (mm) 2000×1300×800
Worktable area (mm) 2200×1100
Maximum weight on table (kg) 2000
Distance from spindle nose to table center (mm) 150-1050
Standard spindle speed (r.p.m) 10-6000
Spindle taper BT50
Machine weight (kg) 17000
Features

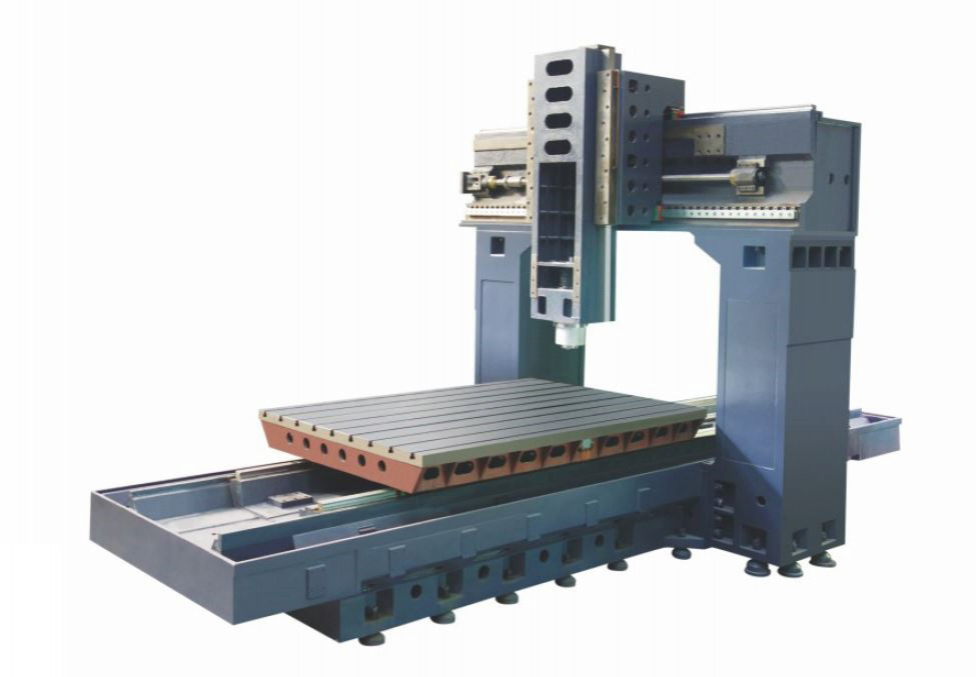

ZF-2013 Gantry Machining Center

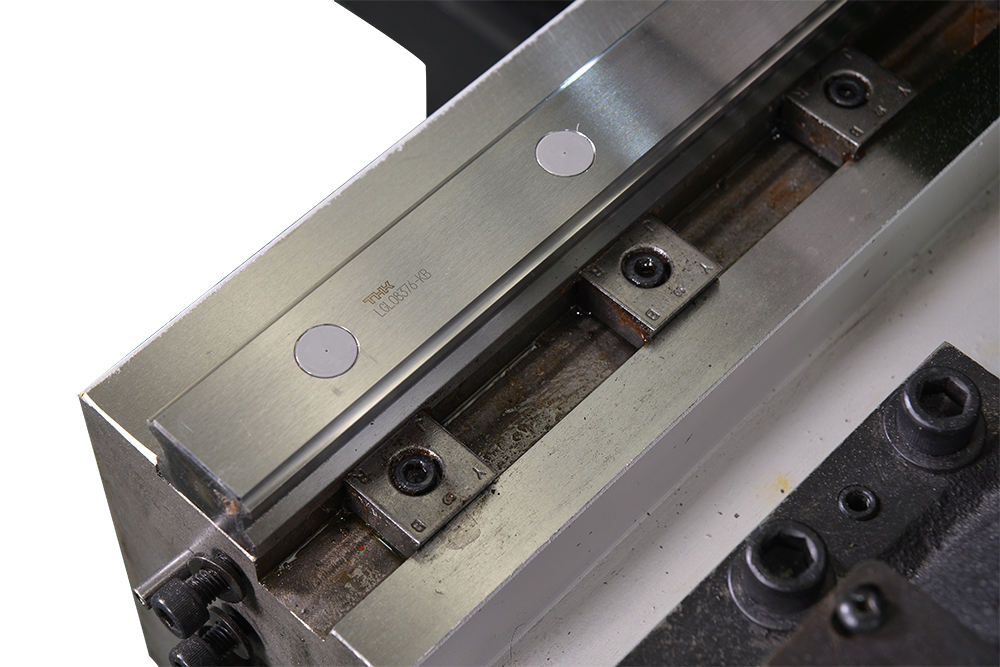

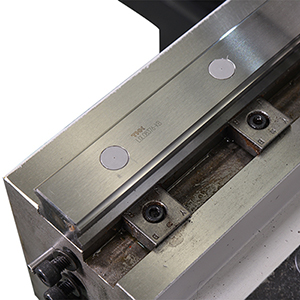

X and Y axis MRSO European roller type linear guide
ZF-2013 Gantry Machining Center

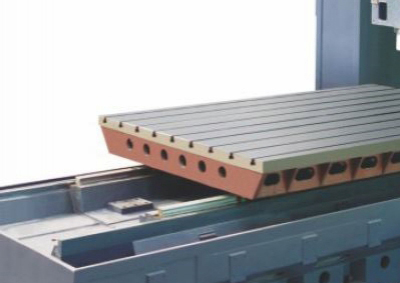

The worktable features a support, which avoids processing errors caused by worktable suspension.
ZF-2013 Gantry Machining Center

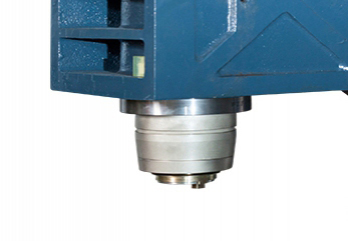

All spindle heads can be equipped with a side milling cutter.
ZF-2013 Gantry Machining Center
The lengthened stroke ensures an effective side milling cutter operation.
