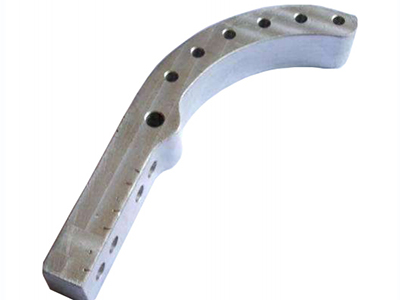

  • Precision Parts Precision Parts
  • Precision Parts Precision Parts
  • Precision Parts Precision Parts
  • Plastic Parts Plastic Parts

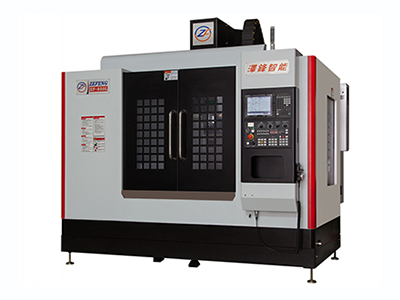

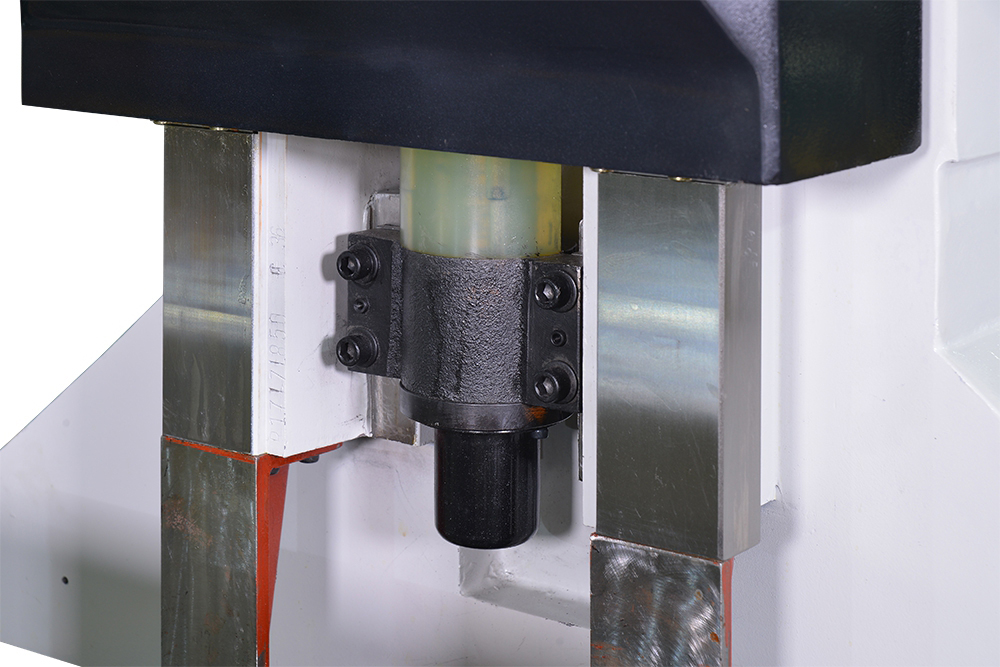

ZF-1580L is a vertical machining center, whose X/Y axis with travel of 1500mm and 800mm adopt linearguideways to ensure processing speed. Z axis adopts box guideway so that spindle is more stable and can bear stronger impact force.

Parameters
Mode ZF-1580L
X/Y/Z axis travel (mm) 1500×800×700
Worktable area (mm) 1700×800
Maximum weight on table (kg) 1500
Distance between spindle center to column (mm) 800
Distance from spindle nose to table center (mm) 130-830
Three-axis motor power (kw) 4.5/4.5/4.5
X/Y/Z axis rapid feed (mm/min) 15000/15000/12000
Control system MISUBISHI:M80A/80B, FANUC:Oi mate-FM/MD, SIEMENS828D
Spindle taper BT50
Standard spindle speed (r.p.m) 8000(6000)
Spindle horsepower (kw) 15
Air pressure (bar) 6-7
Machine dimension (mm) 4280×3200×3500
Machine weight (kg) 13500
Features
ZF-850L Vertical Machining Center

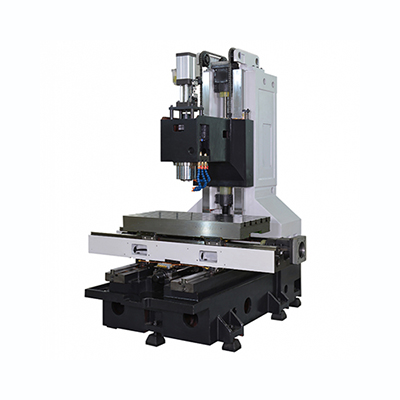

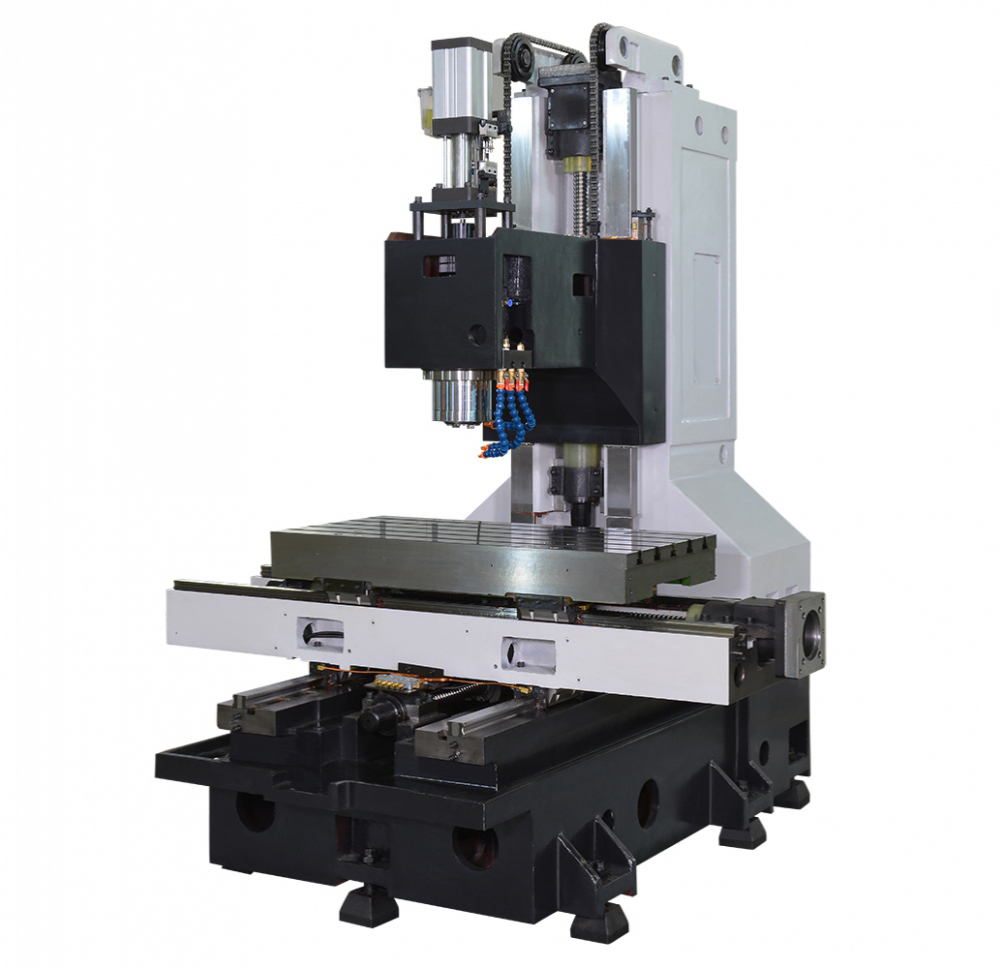

The machine is both concise and compact, and the casting base has been widened with a high rigidity and precision.
ZF-850L Vertical Machining Center

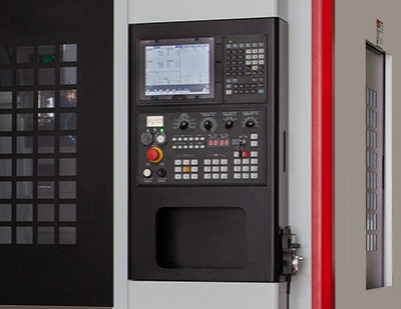

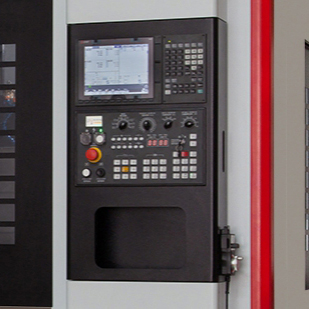

Manual adjustment is allowed during automatic operation.
ZF-850L Vertical Machining Center

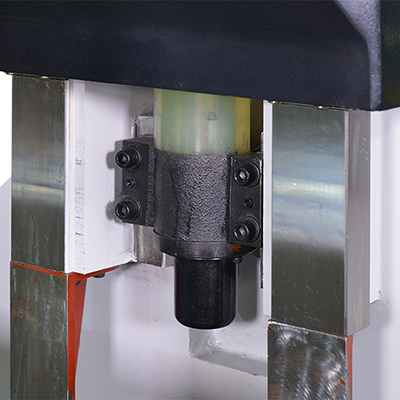

The spindle box interior features a reinforced layer in order to avoid strong vibrations during movement and processing.
ZF-850L Vertical Machining Center

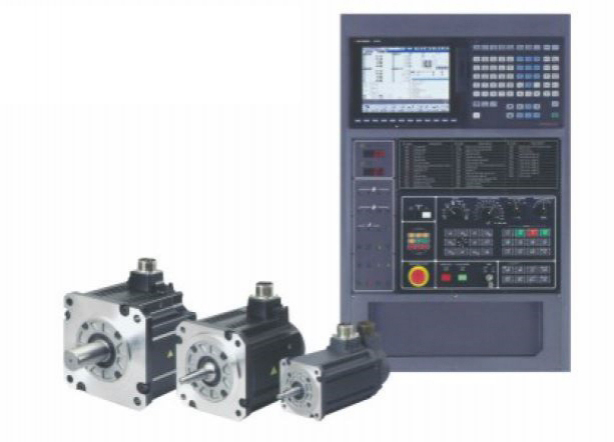

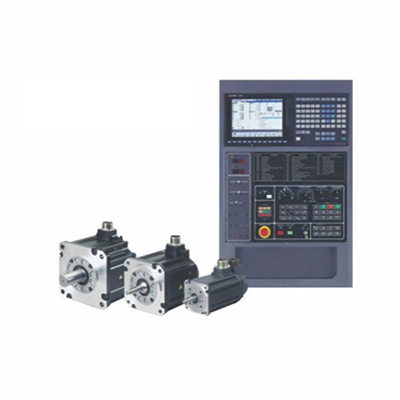

The system and motor come from FANUC and MITSUBISHI.
