ZF-1270V Vertical Machining Center

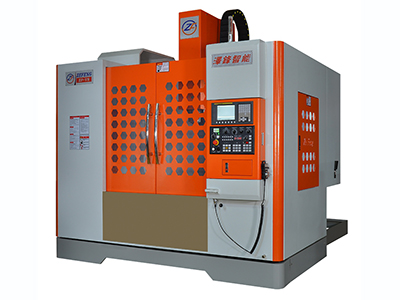

ZF-V8 Vertical Machining Center

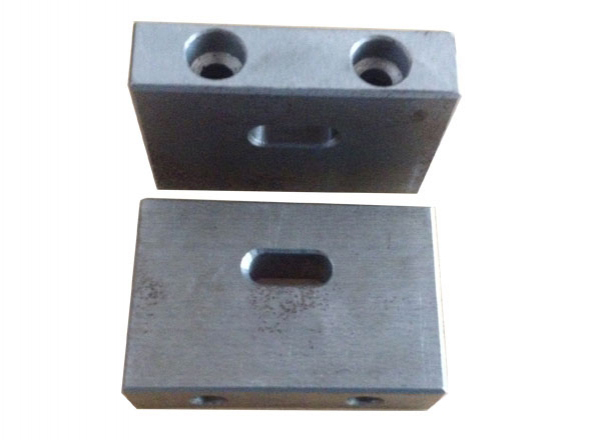

Processed Samples
  • Precision Parts Precision Parts
  • Precision Parts Precision Parts
  • Precision Parts Precision Parts
  • Plastic Parts Plastic Parts

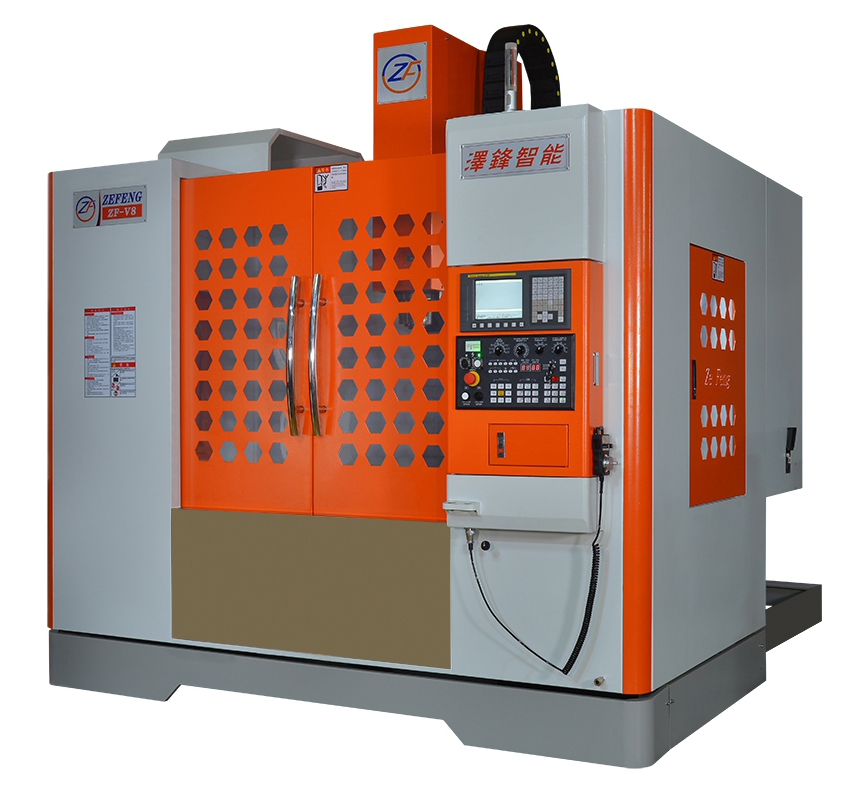

The ZF-1270V is especially suited for the processing of auto parts, electronics parts, and other high precision products. In contrast to other processing equipment, it places more emphasis on the precision, smoothness and flatness of the cutting face. Its 1300mm×600mm worktable area meets most material processing demands.

Parameters
Mode ZF-1270V
X/Y/Z axis travel (mm) 1200×700×700
Worktable area (mm) 1300×600
Maximum weight on table (kg) 800
Distance between spindle center to column (mm) 758
Distance from spindle nose to table center (mm) 150-750
Three-axis motor power (kw) 3
X/Y/Z axis rapid feed (mm/min) 30000
Control system MISUBISHI:M80-A-B, FANUC:Oi- mate-FM, SIEMENS 828D
Spindle taper BT40
Standard spindle speed (r.p.m) 8000(10000)/12000
Spindle horsepower (kw) 11
Air pressure (bar) 6-7
Machine dimension (mm) 3300×2700×2900
Machine weight (kg) 9400
Features
ZF-V8 Vertical Machining Center

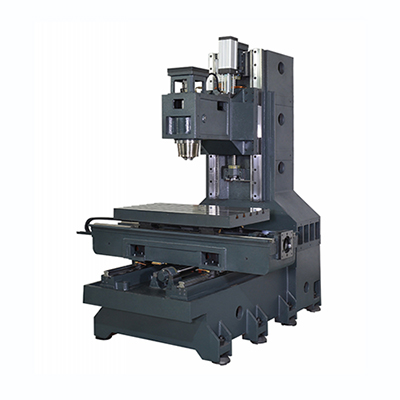

All the structural parts are made from meehanite cast iron and the internal stress is eliminated through tempering to increase the machine’s rigidity and durability.
ZF-V8 Vertical Machining Center

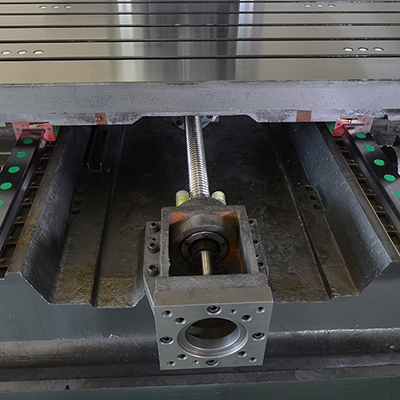

Three spindles adopt high-speed roller type linear guide to ensure lower frictional resistance. The equipment is ideal for machining with high speed and efficiency.
ZF-V8 Vertical Machining Center

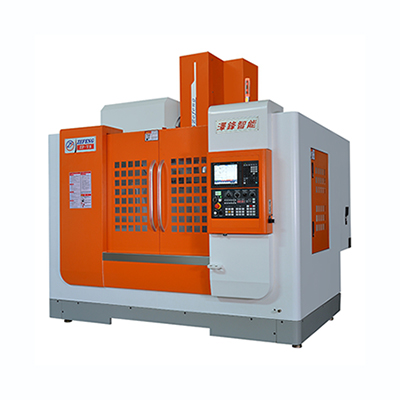

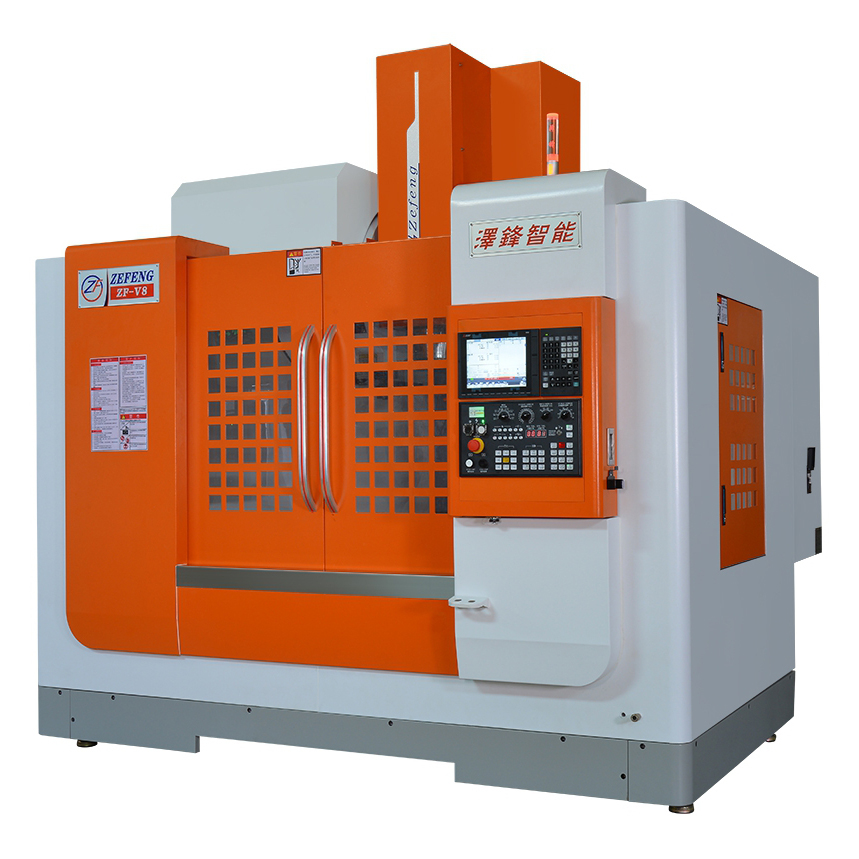

Its totally enclosed protective cover meets environmental requirements and can provide a more comfortable working environment.
ZF-V8 Vertical Machining Center

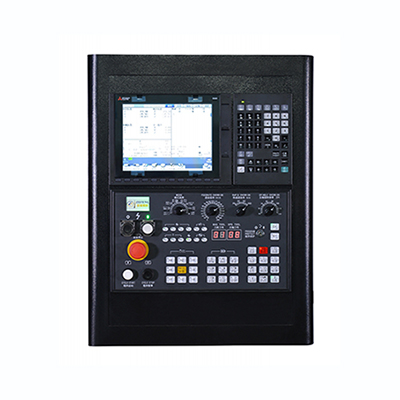

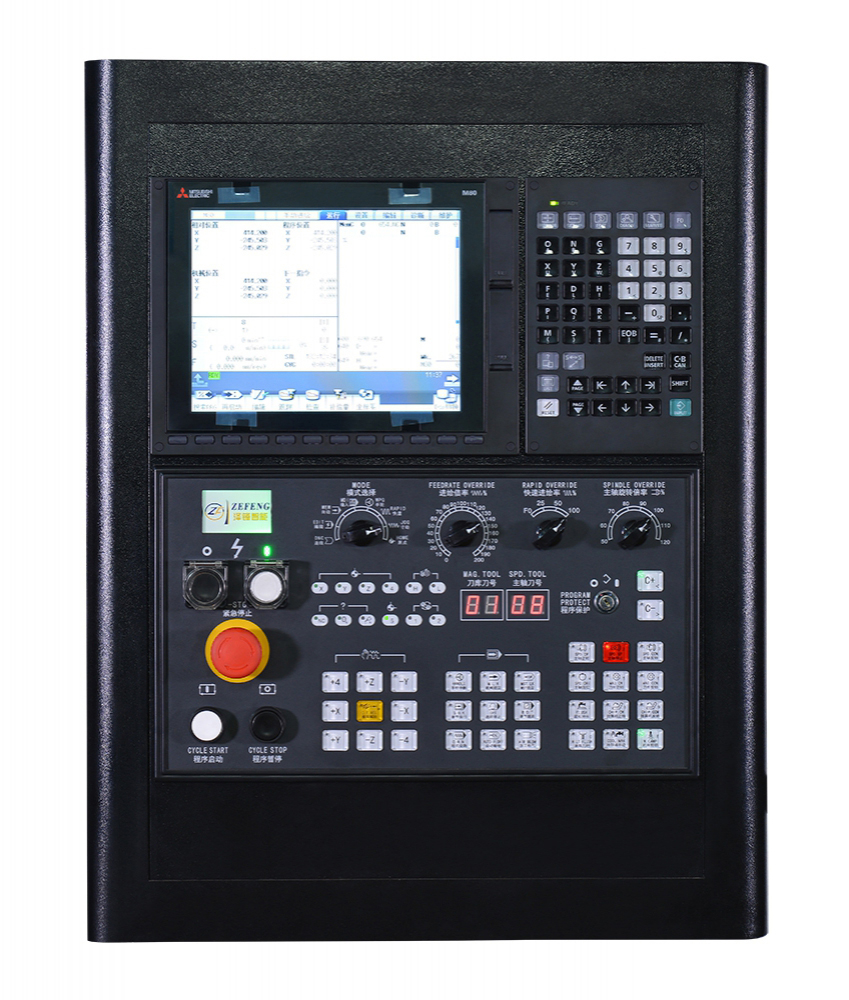

The integration control panel has multiple functions that is convenient for user operation. Various operation systems are available from brands such as MITSUBISH, FANUC and Siemens.
